Squirrel cage asynchronous motor

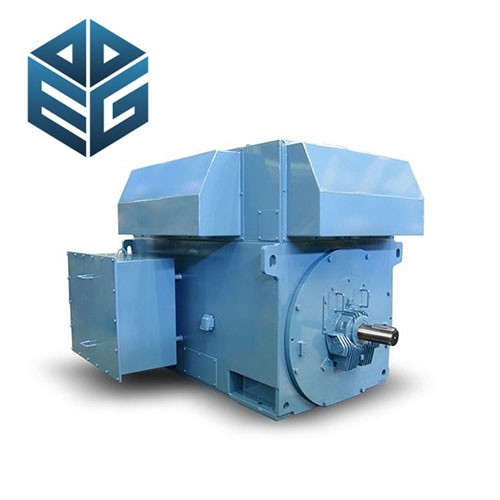

YKS YKK series high voltage squirrel-cage three-phase asynchronous motor new series from H355 to H1120 a total of 11 center heights, voltage grade 6KV, 10KV two kinds.

The design and development of the series of motors adopts advanced calculation and analysis technology, coupled with the use of superior raw materials and sophisticated processing technology and equipment in manufacturing, making the series of motors have the advantages of high performance index, low noise, low vibration and high reliability.

The series motor fully conforms to the national standard GB755 "Rotating motor quota and performance" GB/T10069 "rotating motor operating sound measurement method and noise limit.

GB/T10068 "Measurement, evaluation and limits of mechanical vibration of motors with shaft center height of 56mm and above" and related IEC standards. Basic reference to JB/T7594JB/T10314.1 JB/T10314.2, JB/T10445 and GB/T13957 industry standards, but the power level is extended, part of the installation size change shape.

The basic design of the series motor is a horizontal installation mode with foot (IMB3), the operation rating is continuous (S1), the rated frequency is 50Hz, and the insulation is F class. Under normal circumstances, the motor has four basic protection levels :IP23IP44, IP54 and IP55.

Series of motor cooling methods are usually :1C01IC81WIC611IC616 and IC666 a total of 5.

If the customer needs other forms of requirements (such as: installation mode, protection level, cooling mode and voltage level, etc.), you can order after signing a special technical agreement.

Motor efficiency is higher than ever.
