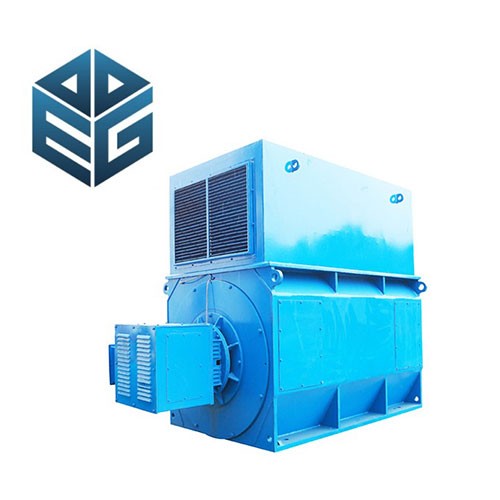

Wound asynchronous motor

YR YRKS YRKK series medium high voltage winding three-phase asynchronous motor is a new product developed by our company, the new series of motor 6kV H355 to H1120 a total of eleven center heights, 10kV H400 to H1120 a total of ten center heights. The design and development of the series of motors adopts advanced calculation and analysis technology, coupled with the use of superior raw materials and advanced processing technology and equipment in manufacturing, which makes the series of motors have the advantages of high performance index, low noise, low vibration and high reliability. Series motor fully comply with GB755 "rotating motor rating and performance".

GB/T10069 "Rotating motor noise determination method and noise limit". GB/T10068 "Shaft center height of 56mm and above motor mechanical vibration, vibration measurement, evaluation and limits" national standard and related IEC60034 standard.

Basically refer to JB/T7594, JB/T10314.1, JB/T10314.2, GB/T13957 and JB/T10445 and other industry standards, but the power level has been extended, and the installation size of some shapes has been changed. The basic design of the series motor is a horizontal installation mode with foot (IMB3), and the working system is continuous (S1).

Under normal circumstances, the motor has three basic protection levels :IP23, IP44, IP54. The cooling methods of series motors are usually IC01, IC81W, IC611 and IC616. Series motors can be used to drive loads such as rolling mills, grinders, hoists, belt conveyors and heavy starting fans.
